Amazon Draaitafel. Amazon draaitafels zijn afkomstig van de in 1983 opgerichte firma met dezelfde naam. Enkele kenmerken zijn het gebruik van DC-motoren ( vaak accu gevoed) en het draaiplateau van speciaal onder druk gegoten acryl, rustend op een speciale lager.
Tevens worden Amazon draaitafels, in tegenstelling tot de meeste snaar-aangedreven draaitafels, door een touwtje met herin een platte knoop in plaats van een rubberen snaar aangedreven.Deze draaitafels zijn eigenlijk ontwikkelt met de Morch tonearm.Alle armborden zijn voor armen met ronde (20 mm) bevestingsgaten ( Morch, Rega Immedia etc.) voor andere zoals: SME, Graham etc.gelden extra kosten.

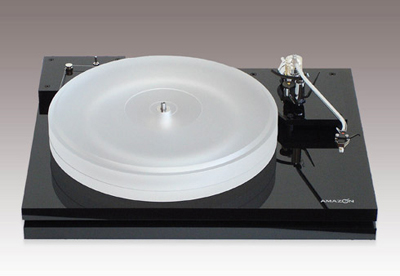

Two
High-End analoog loopwerk met tonearm bord. Amazon keramische lager met olie resorvoir. Acryl Plateau 5 kg. Extern geschakelde voeding. 2 instelbare toerentallen. Afmetingen: 470 x 370 130 mm. Gewicht: 15 kg.

Reference
State - of - the - art analoog loopwerk met toonarm bord. Amazon lager. Aluminium - lood - acryl plateau (11 kg) 10aH batterijvoeding met externe lader en losstaande DC motor met instelbare toerentaller. Inclusief clamp.

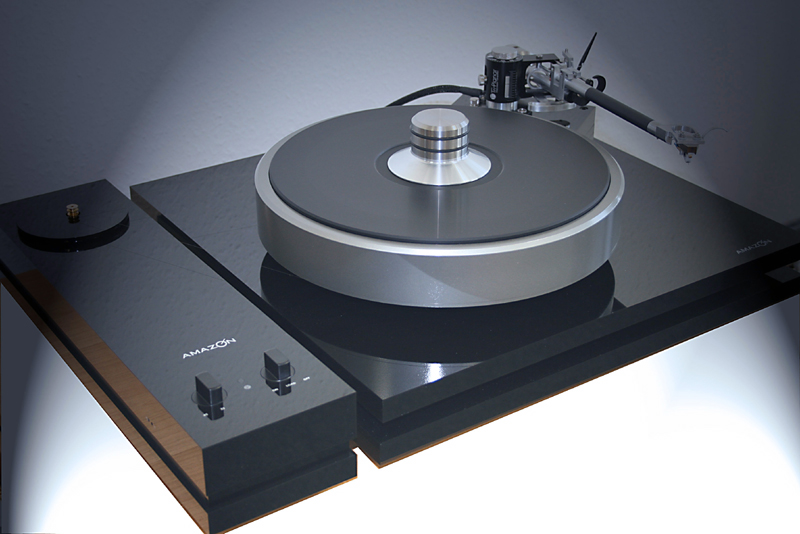

Amazon Reference
Afmetingen (draaitafel) : 470 x 450 x 160 mm (b x d x h)
Afmetingen (motor unit) : 120 x 450 115 mm (b x d x h)
Gewicht: 32 kg Gewicht plateau: 11 kg Center bearing: Inverted steel/ceramic Motor: DC motor met Amazon LSC speed control Power supply: NiMh batterij met automatische micro-controlled lader. Tonearm : 9 - 12,5"
Chassis
The chassis is made of of a special casted low resonance ICI material. We are using for decoupling 8LRP ( Low Resilience Polymer) demper, which as well isolate the two levels of the turntable as demping vibrations in the material.
Platter The weigth of the platter is 11.0 kg. It is made of aluminium, lead and casted acrylic. At the bottem are centrically grooves milled and filled with lead. The central spindel is made of Teflon.
Center bearing
The rotation center is a center of the inverted bearing. The bearing axle and the bearing bush are made of multiple hardened steel and are very fine and the bottem of the axe supply the center bearing constant with oli. The massive construction prevent vibration normaly observed with other turntables.
Motor unit
The motor unit is complely isolated from the turntable.
With a very thin string of Polyamide the torque is transmitted from the pulley to the platter. The speed of the motor is controlled by a patented special LSC-Controller ( Linear Speed Controller) developed by Amazon and only used in Amazon turntables. To fine tune the speed there are two regulators separately for 33 rpm and 45 rpm (1:25) The motor is a DC-model ( used also in navigation automatic steering devices) with perfect results in a constant speed and noise emission.
Power supply
Unique to an analog turntable is the integrated battery power supply. When playing a record the motor unit works only with battery power, completely isolated from the mains. This gurantees that all distortions from the mains are kept away and the motor runs perfect. Amazon motor unit is filled with an intelligent circuit, which controls aal parameters of the selected NiMh batteries.
