The R&D department of Alcons Audio features a unique combination of extensive know-how in transducer-, acoustics and system design, as well as DSP and amplifier technology. This combination has led to impressive products, such as world’s first long-throw ribbon-loaded SR system, modular DSP-controlled directivity line-array a.o.
Alcons’ products are designed to provide the most accurate sound reproduction possible, without adding any unwanted colouring or distortion to the original input. It’s a way of preserving the artist’s creativity.

Alcons Audio is a Dutch company, active in development and manufacturing of professional sound systems for quality-conscious clients in the cinema, installation and touring industry.

Although the company is recently established (October 2002), this doesn’t resemble by far the companies experience in the pro-audio market; Each of the team members has, in average, 15+ years experience in the different aspects of development, manufacturing and marketing of professional sound systems.

All Alcons speakers and amplifiers/processor are developed and manufactured in house with traditional craftsmanship combined with the latest technologies, materials and production processes. This brings a very high quality product with very low depreciation cost; An important factor in today’s pro-audio market, where equipment is seen as a ‘money-making tool’, instead of a ‘money-costing hobby’.

With this in mind, Alcons Audio does not strive for revolutionary ideas, but for evolutionary solutions instead, with an excellent sound and product quality. With focus on compact and smart products, with maximum flexibility, because a product is more than only the technical specifications. Responsive technical support is essential for making sure the system gives maximum performance in the client’s application; That’s why the Alcons Audio team puts strong emphasis on offering technical back up and support.

Producten:o.a.

The Alcons Audio T-series
	The T series is the group of smaller systems for installation and limited portable applications. They are designed for high-quality medium foreground speech/music reproduction.
	Alcons Audio TS3		features
			1” soft-dome tweeter + 6.5” woofer 67Hz. – 20.000Hz. (+/- 3dB) SPL program/peak 109dB / 115dB Signal Integrity Sensing™ pre-wired Dispersion H 90° x V 60° Omnimount™ mounting points, bracket (option)
			read more »
	Alcons Audio TS7		features
			1” soft-dome tweeter + double 6.5” woofer 66Hz. – 20.000Hz. (+/- 3dB) SPL program/peak 115dB / 121dB Signal Integrity Sensing™ pre-wired Dispersion H 90° x V 40° Omnimount™ mounting points, bracket (option)
			read more »
	The Alcons Audio V-series
	The V series is the group of versatile compact systems. Incredible power output combined with true ribbon quality sound reproduction, packed in a multi-application housing.
	Alcons Audio VR8		features
			RBN401 pro-ribbon HF driver with 8” woofer 74Hz. – 20.000Hz. (+/- 3dB) SPL program/peak (nom.) 120dB / 125dB Signal Integrity Sensing™ pre-wired Revolvable 90°x40°/ 40°x90° HempHorn™ wave-guide Asymmetric enclosure for multi-angle mounting Durotect™ scratch-resistant coating
			read more »
	Alcons Audio VR12		features
	Alcons Audio VR12i
	Alcons Audio VR12M
			RBN601 pro-ribbon HF driver with 12” woofer 60Hz. – 20.000Hz. (+/- 3dB) SPL program/peak (nom.) 127dB / 132dB Signal Integrity Sensing™ pre-wired Revolvable 90°x40°/ 40°x90° HempHorn™ wave-guide Asymmetric enclosure for multi-angle mounting Durotect™ scratch-resistant coating All NeoDymium drivers VR12i without handles and stand mount adapter VR12M with “mirrored” baffle, for floor monitor use
			read more »
	VR12/60		features
	VR12/60i
	Alcons Audio VR12/60M
			RBN601 pro-ribbon HF driver with 12” woofer 60Hz. – 20.000Hz. (+/- 3dB) SPL program/peak (nom.) 128dB / 133dB Signal Integrity Sensing™ pre-wired Non-revolvable 60°x30° HempHorn™ wave-guide Asymmetric enclosure for multi-angle mounting Durotect™ scratch-resistant coating All NeoDymium drivers VR12/60i without handles and stand mount adapter VR12/60M with “mirrored” baffle, for floor monitor use
			read more »
	The Alcons Audio Q-series
	The Q-series is the group of modular line-source array columns. True line-source systems, to be used as flat-Isophasic line-array, either in (limited) stacked or flown configuration. Applications include both portable and permanent installations.
	Alcons Audio QR18		features
			RBN1801 pro-ribbon HF driver with 3 x 6.5” woofers All NeoDymium drivers 74Hz. – 20.000Hz. (+/-3dB) SPL program/peak (nom.) 123dB / 144dB Signal Integrity Sensing™ pre-wired 90° HempHorn™ wave-guide Column length 50,6 cm / 19.9 in. Durotect™ scratch-resistant coating
			read more »
	Alcons Audio QR36		features
			Double RBN1801 pro-ribbon HF drivers with 6 x 6.5” woofers All NeoDymium drivers 74Hz. – 20.000Hz. (+/-3dB) SPL program/peak (nom.) 129dB / 150dB Signal Integrity Sensing™ pre-wired 90° HempHorn™ wave-guide Column length 100,6 cm / 39.6 in. Durotect™ scratch-resistant coating
			read more »
	The Alcons Audio L-series
	The L-series is the group of vertical array loudspeaker systems. True line-source systems, to be used as line-array, either in stacked or flown configuration. Applications include both portable and permanent installations.
	Alcons Audio LR14		features
			RBN401 pro-ribbon HF driver with exceptional intelligibility and “throw” All Neodymium drivers 74Hz. – 20.000Hz. (+/-3dB) SPL program/peak (nom.) 126dB / 130dB Signal Integrity Sensing™ pre-wired “Morpher” lens in 120°x15° HempHorn™ wave-guide Durotect™ scratch-resistant coating
			read more »
	Alcons Audio LR14B		features
			Bass system stackable and flyable with LR14 or in separate arrays Double-tuned band-pass design with high efficiency Neodymium 12” drivers for excellent performance-to-weight ratio 46Hz. – 200Hz (+/- 3dB) SPL program/peak (nom.) 130dB / 135dB Signal Integrity Sensing™ pre-wired Durotect™ scratch-resistant coating
			read more »
	Alcons Audio LR16		features
			RBN601 pro-ribbon HF with double 8” tapered woofers 74Hz. – 20.000Hz. (+/-3dB) SPL program/peak (nom.) 123dB / 135dB (HF) Signal Integrity Sensing™ pre-wired “Morpher” lens in 90°x10° HempHorn™ wave-guide Durotect™ scratch-resistant coating
			read more »
	Alcons Audio LR16B		features
			Bass system stackable and flyable with LR16 or in separate arrays Double-tuned band-pass design with high efficiency Neodymium 15” drivers for excellent performance-to-weight ratio 46Hz. – 200Hz (+/- 3dB) SPL program/peak (nom.) 132dB / 137dB Signal Integrity Sensing™ pre-wired Durotect™ scratch-resistant coating
			read more »
	The Alcons Audio B-series
	The B series is the bass range; From high quality low frequency extension to high pressure bass output can be found in this category. To be combined with any Alcons cabinet.
	Alcons Audio BF181		features
	BF181i
			Single 18” woofer (4 ohms) 33Hz - 200Hz (+/- 3dB) SPL program/peak (nom.) 128dB / 136dB Signal Integrity Sensing™ pre-wired Stand mount Double baffle board w. flush mount transducers Durotect™ scratch-resistant coating BF181i without handles, castor wheels, cover and stand mount
			read more »
	Alcons Audio BF302		features
	BF302i
			Double 15” woofer 36Hz. – 150Hz. (+/- 3dB) SPL program/peak (nom.) 133dB / 141dB Signal Integrity Sensing™ pre-wired Large, centrally placed vent Double baffle board w. flush mount transducers Durotect™ scratch-resistant coating BF302i without handles, castor wheels and cover
			read more »
	Alcons Audio BF362		features
	BF362i
			Double 18” woofer 33 – 150Hz. (+/-3dB) SPL program/peak (nom.) 134 / 141dB Signal Integrity Sensing pre-wired Large, centrally placed vent Double baffle board w. flush mount transducers Durotect™ scratch-resistent coating BF362i without handles, castor wheels and cover
			read more »
	The Alcons Audio C-series
	The C series is Alcons’ evolutionary sound system program, truly dedicated to cinema. A “future-proof” solution for Digital Cinema, with the industries’ most shallow constructions.
	Alcons Audio CR1		features
			RBN401 pro-ribbon HF driver, 6.5" midrange and 12" woofer industries most-shallow enclosure (18cm/7-in.) Signal Integrity Sensing™pre-wired ‘Real-90’ dispersion, H 90° x V 40° single-amp operation up to 100 seat theatres
			read more »
	Alcons Audio CR2		features
			RBN601 pro-ribbon HF driver with double 8” midrange and 15” woofer 41Hz. – 20.000Hz. (+/- 3dB) Signal Integrity Sensing™ pre-wired Dispersion H 90° x V 40° Ultra-shallow enclosure (25cm/10”) for space economic mounting Bi-amp operation 100-300 seat theatres
			read more »
	Alcons Audio CR4		features
			RBN601 pro-ribbon HF driver with double 8” midrange and double 15” woofer 40Hz. – 25.000Hz. (+/- 3dB) Shallow system design (35cm/14”) for space economic mounting Signal Integrity Sensing™ pre-wired Dispersion H 90° x V 40° down to 250Hz. Bi-amp or tri-amp operation 300 – 500 seat theatres
			read more »

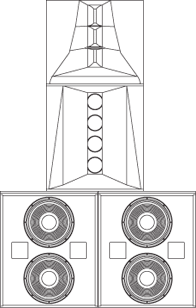

	Alcons Audio CR5		features
			RBN601 pro-ribbon HF driver with double 8” midrange and quad 15” woofer 40Hz. – 25.000Hz. (+/- 3dB) Shallow system design (35cm/14”) for space economic mounting Signal Integrity Sensing™ pre-wired Dispersion H 90° x V 40° down to 250Hz. Tri-amp operation >500 seat theatres
			read more »
	Alcons Audio CB181SL (Ultra-slim subwoofer system)		features
			single 18” long-excursion woofer 35Hz. – 150Hz. (+/- 3dB) Lowest usable frequency 25Hz. Power handling 1.000W RMS, 6.000W peak Signal Integrity Sensing™ pre-wired Large, side-placed vents for improved flow capacity without moving the screen
			read more »
	Alcons Audio CB362 (high-output subwoofer system)		features
			Double 18” long-excursion woofers 46Hz. – 150Hz. (+/- 3dB) Lowest usable frequency 25Hz. Power handling 2.000W RMS, 12.000W peak Signal Integrity Sensing™ pre-wired Large, centrally placed vent for improved air velocity and flow capacity
			read more »
	Alcons Audio CCS8		features
			1” compression driver with 8” woofer in coaxial configuration 72Hz. – 20.000Hz. (+/- 3dB) High power handling; 280W. continuous (AES) Signal Integrity Sensing™ pre-wired Dispersion 70° conical 10° slanted baffle for optimised projection
			read more »
	The Alcons Audio ALC-series
	The ALC are the "engines" for the Alcons speaker systems. They are tailormade for dedicated Alcons systems powering ("plug & play"), but are easily converted into a "standard" stereo amplifier for powering non-Alcons speaker systems.
	Alcons Audio ALC2		features
	ALC2-ST
			2 x 1.050 W @ 2 ohms RMS, Class G SDP Speaker Drive Processor™ SIS Signal Integrity Sensing™, damping > 10.000 ATCM Advanced Thermal and Clip Management™ Data port for remote control network ST version with stealth-hidden volume controls
			read more »
	Alcons Audio ALC4		features
	ALC4-ST
			2x 2.250 W @ 2 ohms RMS, Class G Dual power supply + 407 Joules capacitor bank SDP Speaker Drive Processor™ SIS Signal Integrity Sensing™, damping > 10.000 ATCM Advanced Thermal and Clip Management™ Data port for remote control network ST version with stealth-hidden volume controls
			read more »
	Alcons Audio ALC6		features
	ALC6-ST
			2x 3.000 W @ 4 ohms RMS, Class G Dual power supply Optimized for “4 ohms and up” operation SDP Speaker Drive Processor™ SIS Signal Integrity Sensing™, damping > 10.000 ATCM Advanced Thermal and Clip Management™ Data port for remote control network ST version with stealth-hidden volume controls
